Parking lot optimization system
MOBILE PARKING LIMITED
Omni-directional camera guidance system

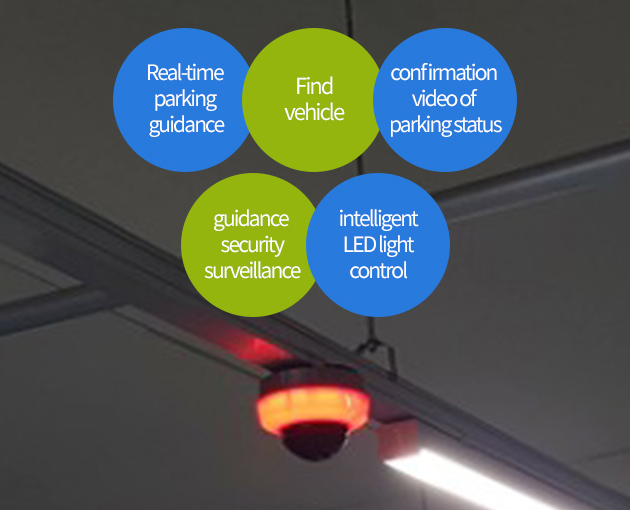

What is 360˚ omni-directional camera guidance system?
Omni-directional camera guidance system with intelligent type
12 million pixel 360˚ omni-directional camera,
the system analyzes video from cameras
(up to 6 sides recognition per camera).
By analyzing parked car images with the intelligent 12 million pixel 360˚ omni-directional camera, it recognizes the shape
and license plate number (up to 6 sides recognition per camera), and uses this to provide quick vehicle guidance, surveillance,
parking location check, and parking control system integrated operation services.
- 1Recognize up to 6 sides of parking area with 1 camera
- 2Save real-time video recording to secure evidence in case of an accident
- 3Recognize parked vehicle license plate and save the data
- 4Camera and lamp integrated type
- 5Secure vehicle search and vehicle location confirmation

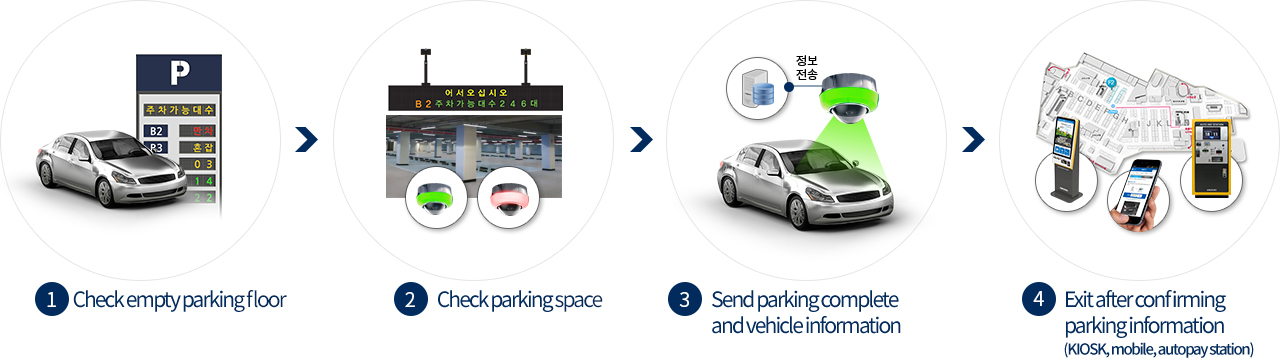

360˚ omni-directional camera video guidance system process flow drawings
Applies the data from entry to exit of the parking lot and guides drivers with the parking situation alone without an attendant.

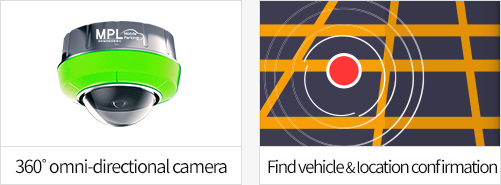

Location confirmation system
A system that helps with finding the location of parked vehicles in the parking lot using a uni-directional video guidance camera, and that can search a customer's vehicle location and their location using pre-autopay station, KIOSK, or mobile by entering the license plate number.
360˚ parking area camera license plate number recognition
and parking location check

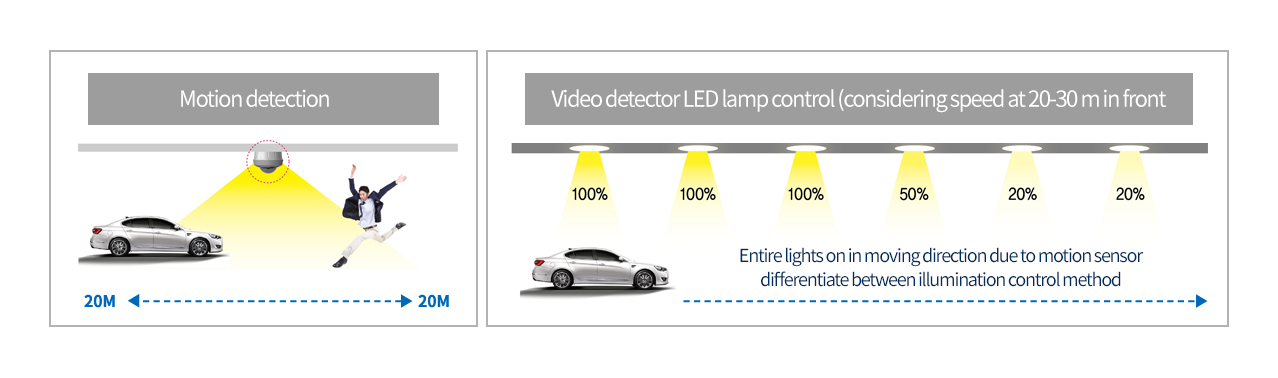

Video guidance system linked between lighting control
Uses 360° omni-directional camera for 20 m on either side for 30 m diameter detection of vehicle or people's movement, enabling prediction of free movement, and LED lamps for corresponding locations can be controlled individually or in groups. (outside illumination automatic response, illumination control by time)

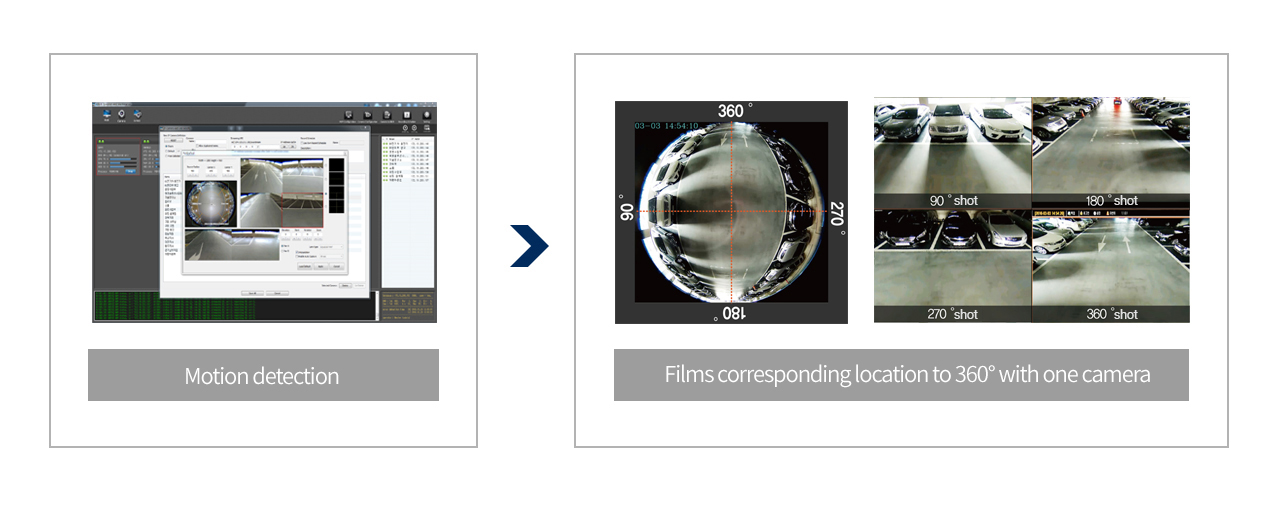

Video guidance security surveillance system
Analyzes 6 sides or parking area with one 12 million pixel 360° omni-directional camera, and complete security surveillance can be performed as there is no blind spot directly underneath, which was the downside of the existing CCTV, and it is processed all together without installing additional parking lot security CCTV units.
System equipment
-
Uni-directional camera (green)
-
Uni-directional camera (red)
-
Uni-directional camera (flash)
